The API Fabric streamlines data management by handling data structures, processing, and transformations to enable seamless data flow.

Data Persistence​

Data persistence in API Fabric is managed using a relational database (PostgreSQL). Each integrated application requires a dedicated database table schema. Below are the steps and UI-based guidelines for creating and managing database schemas.

Creating a New Artifact​

To create a new artifact within the API Fabric, follow these UI steps:

  1. Navigate to the Dashboard: Go to Dashboard → API Fabric.
  2. Open the Artifact Section: Click on the Artifact tab in the top navigation bar.
  3. Locate the Application: Navigate to My Artifacts → Global-App-Group → reimbursement-app.
  4. Create an Artifact: Click the (+) button at the bottom.
  5. Enter the Artifact Name: Provide a unique name for the artifact.
  6. Confirm Creation: Click Create Artifact.
  7. Save the Artifact: Click Save and close the window.

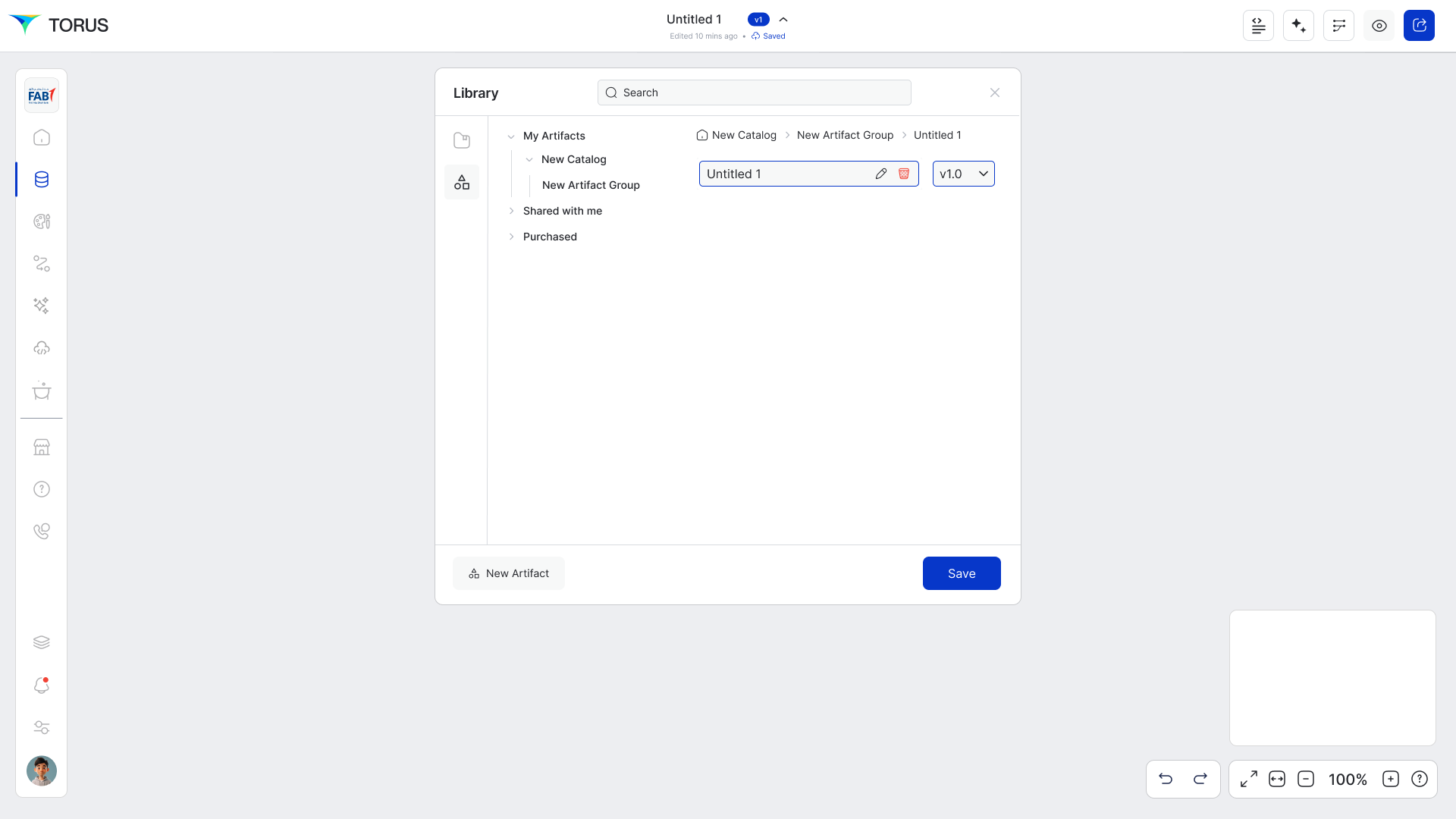

Create Artifact

The artifact acts as the foundation for schema design.

Although API Fabric does not use traditional nodes like other fabrics, the Entity-Relationship Diagram (ERD) components serve as the key building blocks for schema design. These components include:

  • Custom Table: Represents a database table in the schema.
  • Primary Key: Defines the unique identifier for each record.
  • Foreign Key: Establishes relationships between tables.
  • API Methods: Controls the exposure of database tables as REST APIs.

These elements are managed through the ERD interface, allowing for a visual approach to database structuring.

Designing the Entity-Relational Diagram (ERD)​

Adding Tables to ERD​

  • Open the Node Gallery (left panel) and drag a 'Custom Table' node into the workspace.
  • Right-click on the node to access the context menu, which includes:
    • Edit Node
    • Cut / Copy / Paste
    • Delete (with keyboard shortcut support)

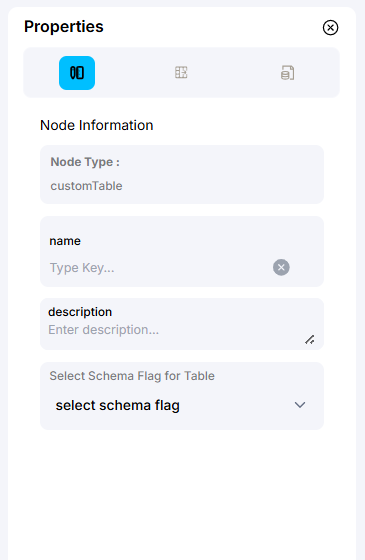

Node Gallery

Configuring Table Properties​

  • The first tab in the Node Properties panel customizes the visual settings (e.g., node name).
  • The second tab defines table attributes, including:
    • Column Names
    • Data Types
    • Constraints (e.g., Primary Keys, Defaults)

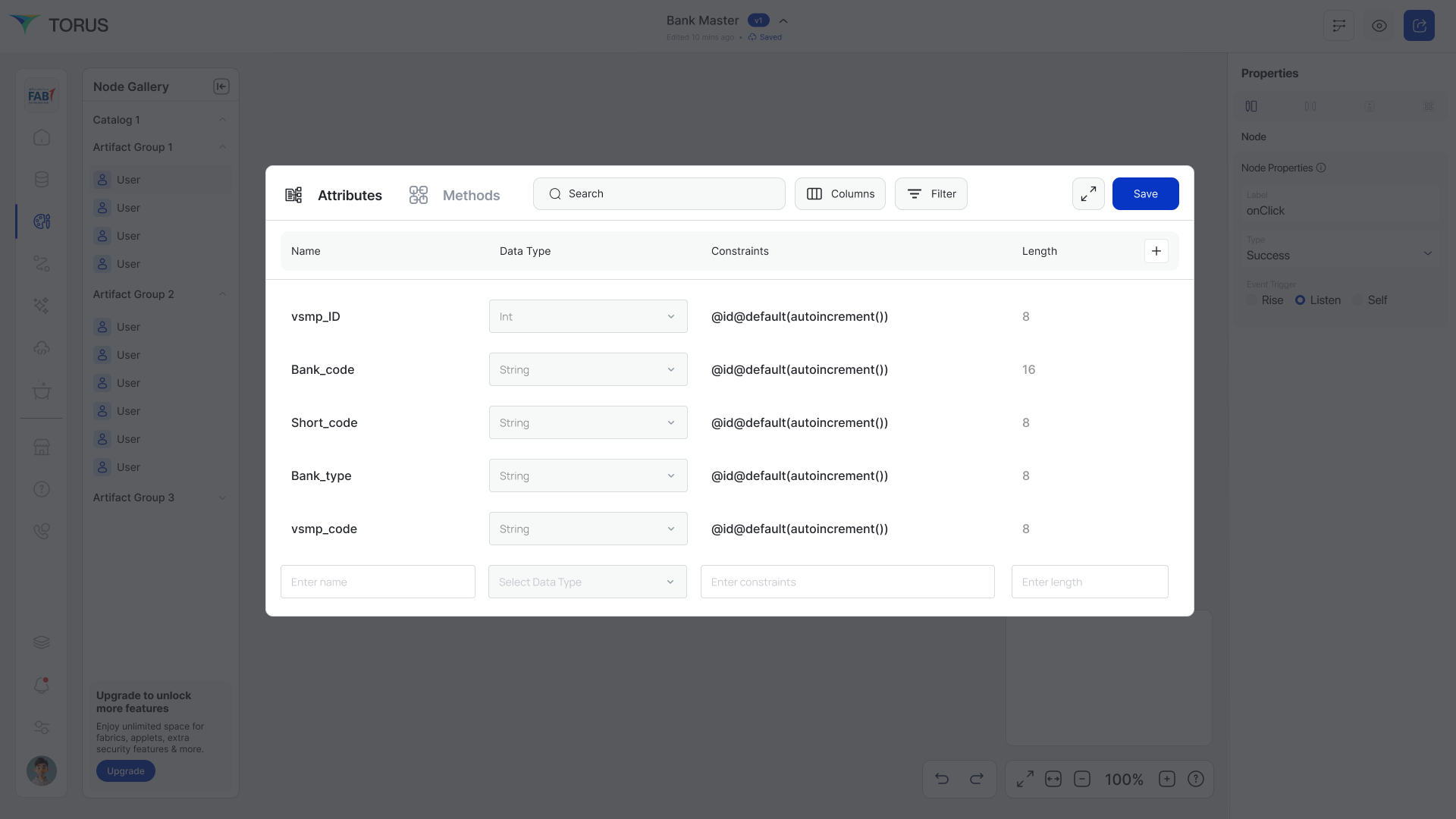

Table Properties

@id @default(autoincrement()) // Defines the Primary Key

Setting Up API Methods​

  • Navigate to the Methods tab in the Node Properties panel.
  • Enable or disable REST API endpoints for the selected table:
    • GET (Retrieve a single record)
    • GETALL (Retrieve all records)
    • POST (Create a new record)
    • PUT (Update an existing record)
    • DELETE (Remove a record)
  • Configure query parameters and conditions to refine API responses.

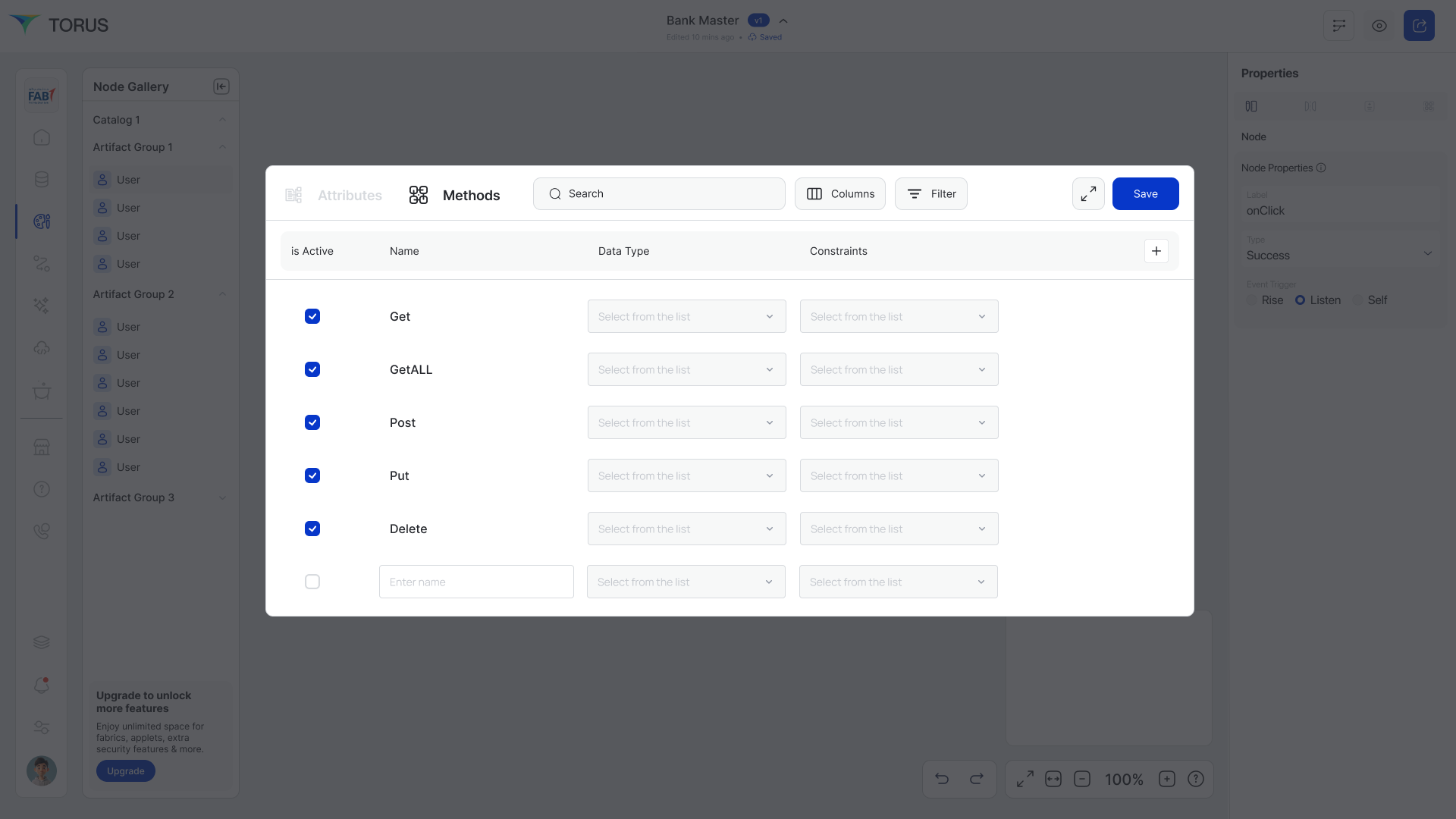

API Methods

Establishing Relationships​

  • To create a one-to-one relationship, drag a field from one table to another.
  • To change it to a one-to-many relationship:
    • Click on the end of the connecting line where the 'Many' side should be.
    • Choose Many from the menu.

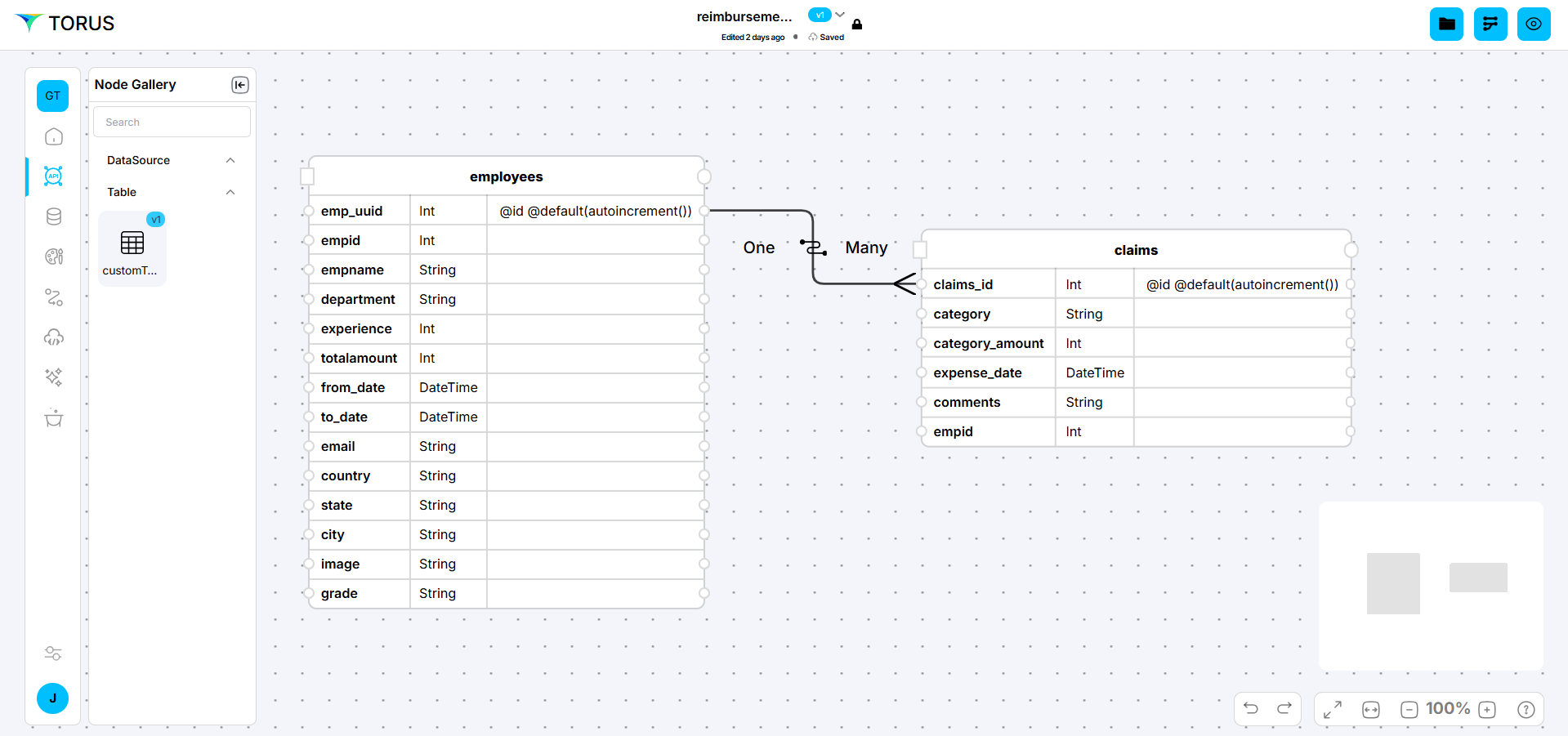

ERD Relationship

Assembler​

The Assembler screen is the central hub for application builds within the Continuous Deployment Fabric.

  • Select App Group & Version: Choose an App Group, App, and Version.
  • Initiate Build Process: With API Fabric integration, this step:
    • Automatically creates defined tables in PostgreSQL.
    • Generates the necessary APIs.
    • Prepares the artifacts for deployment stages.
note

Always click Save after making any changes to your artifact to ensure updates are stored successfully.
